Cummins

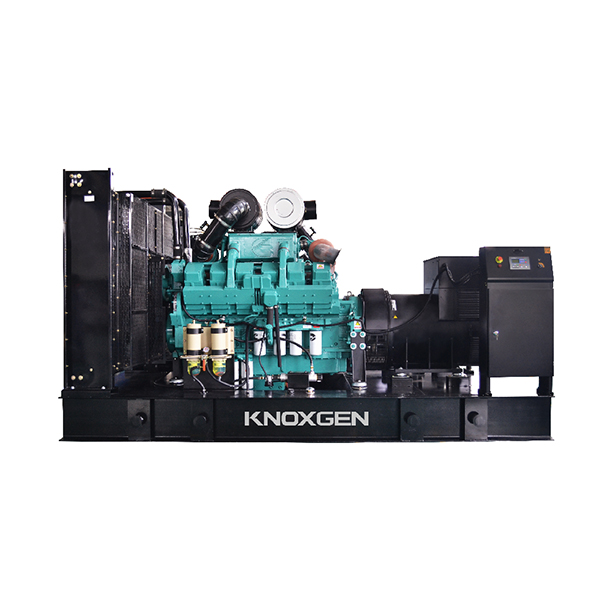

KNOXGEN KDC Series are powered by CUMMINS diesel engine which covers 28kVA to3000kVAgenerator sets,high reliability,low applied cost has won the industrial and mining enterprises andother industry preference.
KDC series power section of the product has excellent load acceptance performance,advancedeconomy,power performance and reliability, long service life etc.
| Genset Model | Standb Power | Prime Power | DIESEL ENGINE | Specifications | |||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | Brand | Model | ||
| KDE-28C | 28 | 22 | 25 | 20 | Cummins | 4B3.9-G1 | |
| KDE-44C | 44 | 35 | 40 | 32 | Cummins | 4BT3.9-G1 | |
| KDE-65C | 65 | 52 | 60 | 48 | Cummins | 4BTA3.9-G2 | |
| KDE-80C | 80 | 64 | 72.5 | 58 | Cummins | 4BTA3.9-G11 | |
| KDE-102C | 102 | 82 | 94 | 75 | Cummins | 6BT5.9-G1 | |
| KDE-109C | 109 | 87 | 100 | 80 | Cummins | 6BT5.9-G2 | |
| KDE-125C | 125 | 100 | 115 | 92 | Cummins | 6BTA5.9-G2 | |
| KDE-142C | 142 | 114 | 130 | 104 | Cummins | 6BTAA5.9-G2 | |
| KDE-170C | 170 | 136 | 156 | 125 | Cummins | 6BTAA5.9-G12 | |
| KDE-175C | 175 | 140 | 160 | 128 | Cummins | 6CTA8.3-G1 | |
| KDE-200C | 200 | 160 | 181 | 145 | Cummins | 6CTA8.3-G2 | |
| KDE-220C | 220 | 176 | 200 | 160 | Cummins | 6CTAA8.3-G2 | |
| KDE-275C | 275 | 220 | 250 | 200 | Cummins | NT855-GA | |
| KDE-275DC | 275 | 220 | 250 | 200 | Cummins | 6LTAA8.9-G2 | |
| KDE-303C | 303 | 242 | 275 | 220 | Cummins | 6LTAA9.5-G3 | |
| KDE-350C | 350 | 280 | 320 | 256 | Cummins | NTA855-G1B | |
| KDE-350DC | 350 | 280 | 312 | 250 | Cummins | 6LTAA9.5-G1 | |
| KDE-375C | 375 | 300 | 344 | 275 | Cummins | NTA855-G2A | |
| KDE-412C | 412 | 330 | 375 | 300 | Cummins | NTAA855-G7 | |
| KDE-450C | 450 | 360 | NA | NA | Cummins | NTAA855-G7A | |
| KDE-500C | 500 | 400 | 450 | 360 | Cummins | KTA19-G3 | |
| KDE-550C | 550 | 440 | 500 | 400 | Cummins | KTA19-G3A | |
| KDE-650C | 650 | 520 | NA | NA | Cummins | KTA19-G8 | |
| Genset Model | Standb Power | Prime Power | DIESEL ENGINE | Specifications | |||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | Brand | Model | ||
| KDE-500C-60 | 500 | 400 | 437 | 350 | Cummins | KTA19-G2 | |
| KDE-562C-60 | 562 | 450 | 512 | 410 | Cummins | KTA19-G3 | |
| KDE-625C-60 | 625 | 500 | 562 | 450 | Cummins | KTA19-G3A | |
| KDE-700C-60 | 700 | 560 | 620 | 500 | Cummins | QSK19-G4 | |
| KDE-750C-60 | 750 | 600 | NA | NA | Cummins | KTAA19-G6A | |
| KDE-750CC-60 | 750 | 600 | 688 | 550 | Cummins | QSK19-G5 | |
| KDE-850C-60 | 850 | 680 | 775 | 620 | Cummins | KT38-G | |
| KDE-1000C-60 | 1000 | 800 | 910 | 728 | Cummins | KTA38-G2 | |
| KDE-1100C-60 | 1100 | 880 | 1000 | 800 | Cummins | KTA38-G2A | |
| KDE-1250C-60 | 1250 | 1000 | 1125 | 900 | Cummins | KTA38-G4 | |
| KDE-1375C-60 | 1375 | 1100 | NA | NA | Cummins | KTA38-G9 | |
| KDE-1562C-60 | 1562 | 1250 | 1420 | 1136 | Cummins | KTA50-G3 | |
| KDE-1875C-60 | 1875 | 1500 | 1619 | 1295 | Cummins | KTA50-G9 | |
| KDE-33C-60 | 33 | 26 | 30 | 24 | Cummins | 4B3.9-G2 | |
| KDE-50C-60 | 50 | 40 | 45 | 36 | Cummins | 4BT3.9-G2 | |
| KDE-68C-60 | 68 | 55 | 62.5 | 50 | Cummins | 4BTA3.9-G2 | |
| KDE-90C-60 | 90 | 72 | 80 | 64 | Cummins | 4BTA3.9-G11 | |
| KDE-120C-60 | 120 | 96 | 110 | 88 | Cummins | 6BT5.9-G2 | |
| KDE-145C-60 | 145 | 104 | 130 | 116 | Cummins | 6BTA5.9-G2 | |
| KDE-156C-60 | 156 | 125 | 145 | 116 | Cummins | 6BTAA5.9-G2 | |
| KDE-180C-60 | 180 | 145 | 167.5 | 134 | Cummins | 6BTAA5.9-G2 | |
| KDE-212C-60 | 212 | 170 | 200 | 160 | Cummins | 6CTA8.3-G2 | |
| KDE-250C-60 | 250 | 200 | 230 | 184 | Cummins | 6CTAA8.3-G2 | |
| KDE-285C-60 | 285 | 228 | 265 | 212 | Cummins | 6LTAA8.9-G2 | |
| KDE-306C-60 | 306 | 245 | 280 | 224 | Cummins | 6LTAA8.9-G3 | |
| KDE-344C-60 | 344 | 275 | 312 | 250 | Cummins | NTA855-G1 | |
| KDE-375C-60 | 375 | 300 | 345 | 276 | Cummins | NTA855-G1B | |
| KDE-438C-60 | 438 | 350 | 400 | 320 | Cummins | NTA855-G3 | |
