KD2V88

Short Description:


● Steady and reliable performance.
● Electric starter make starting more easily
● More compact, exact and lightweight
● Advanced noise reduction design
● Easy maintenance

FEATURES & BENEFITS

SPECIFICATIONS

PRODUCT TAGS

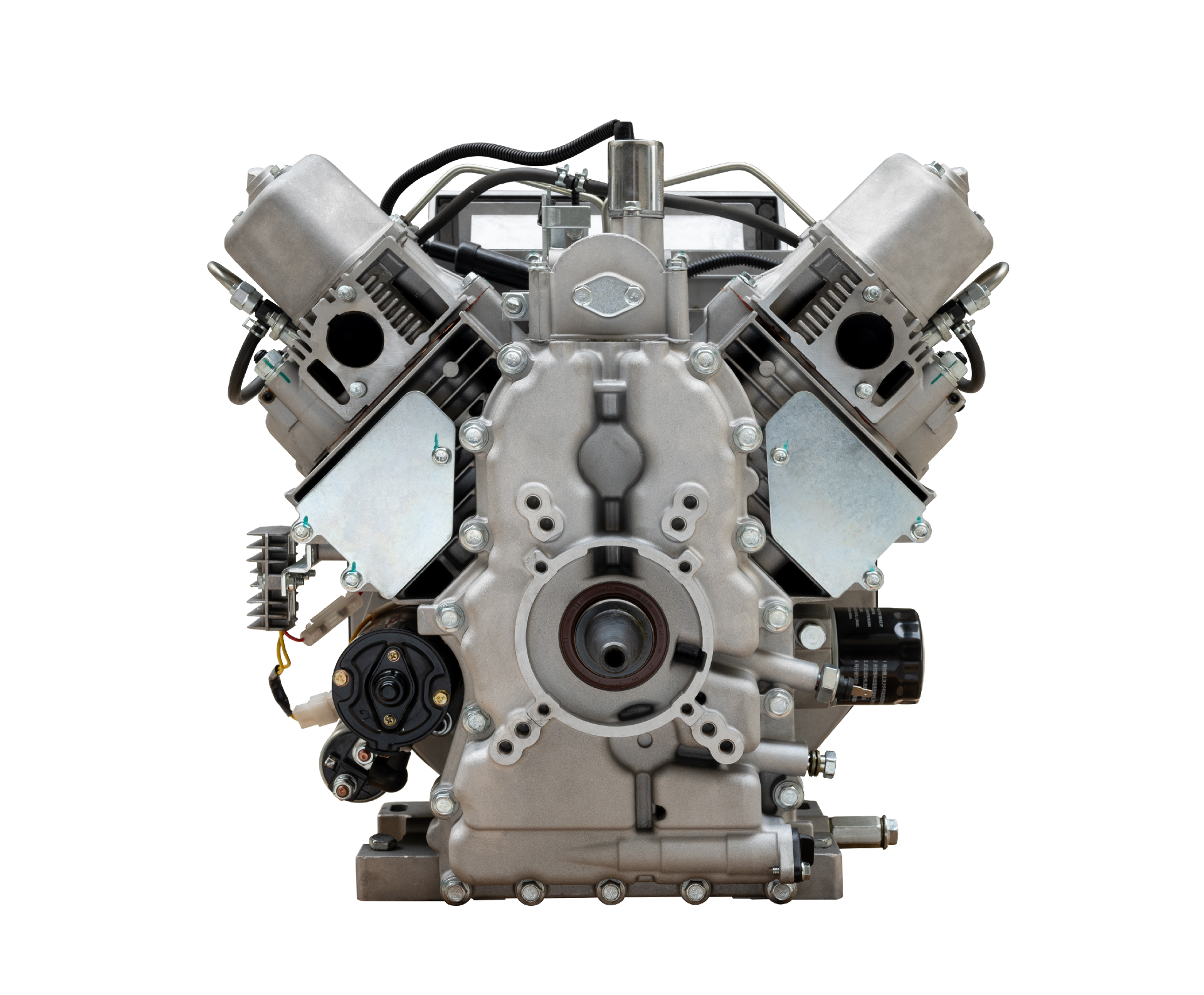

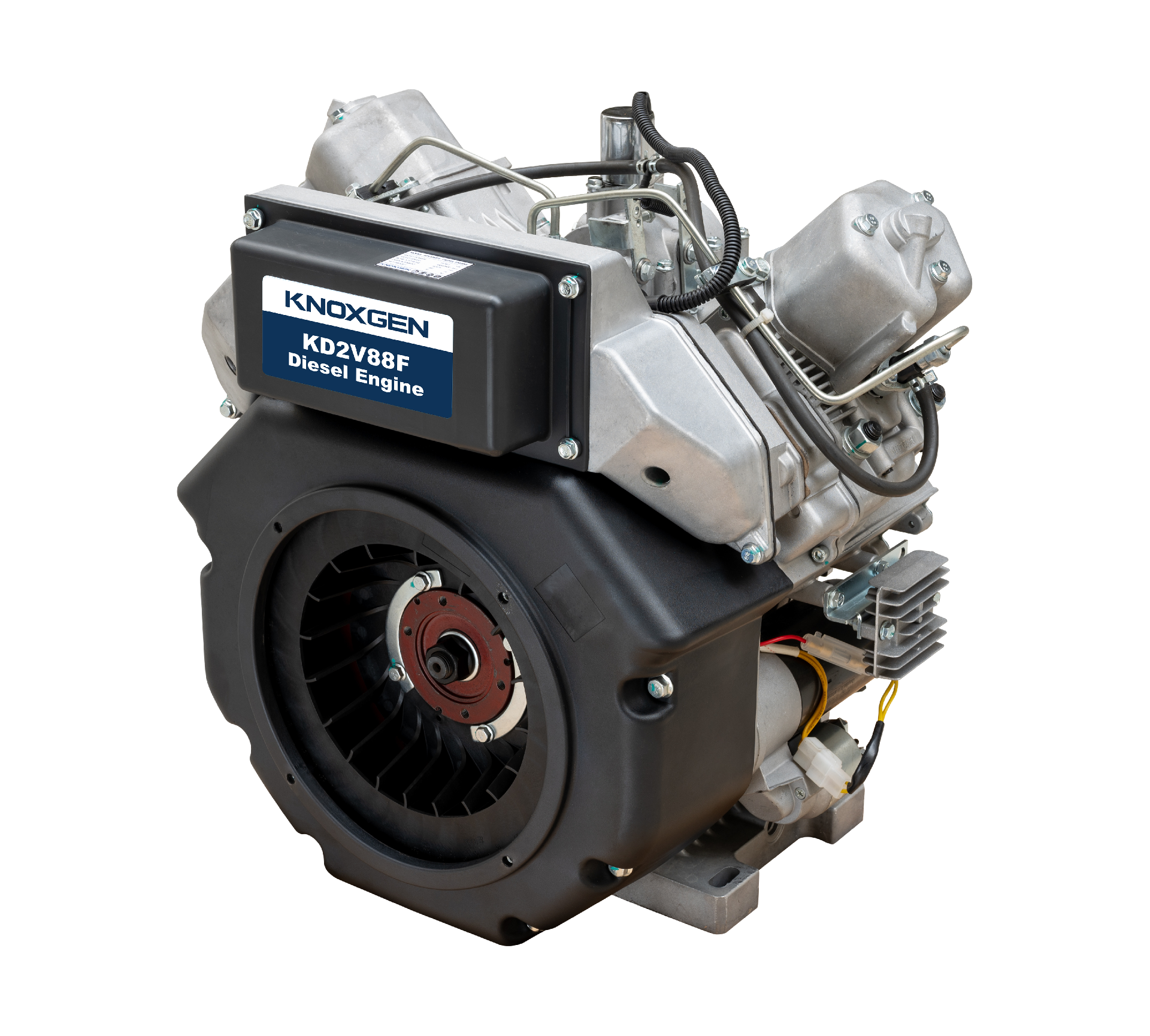

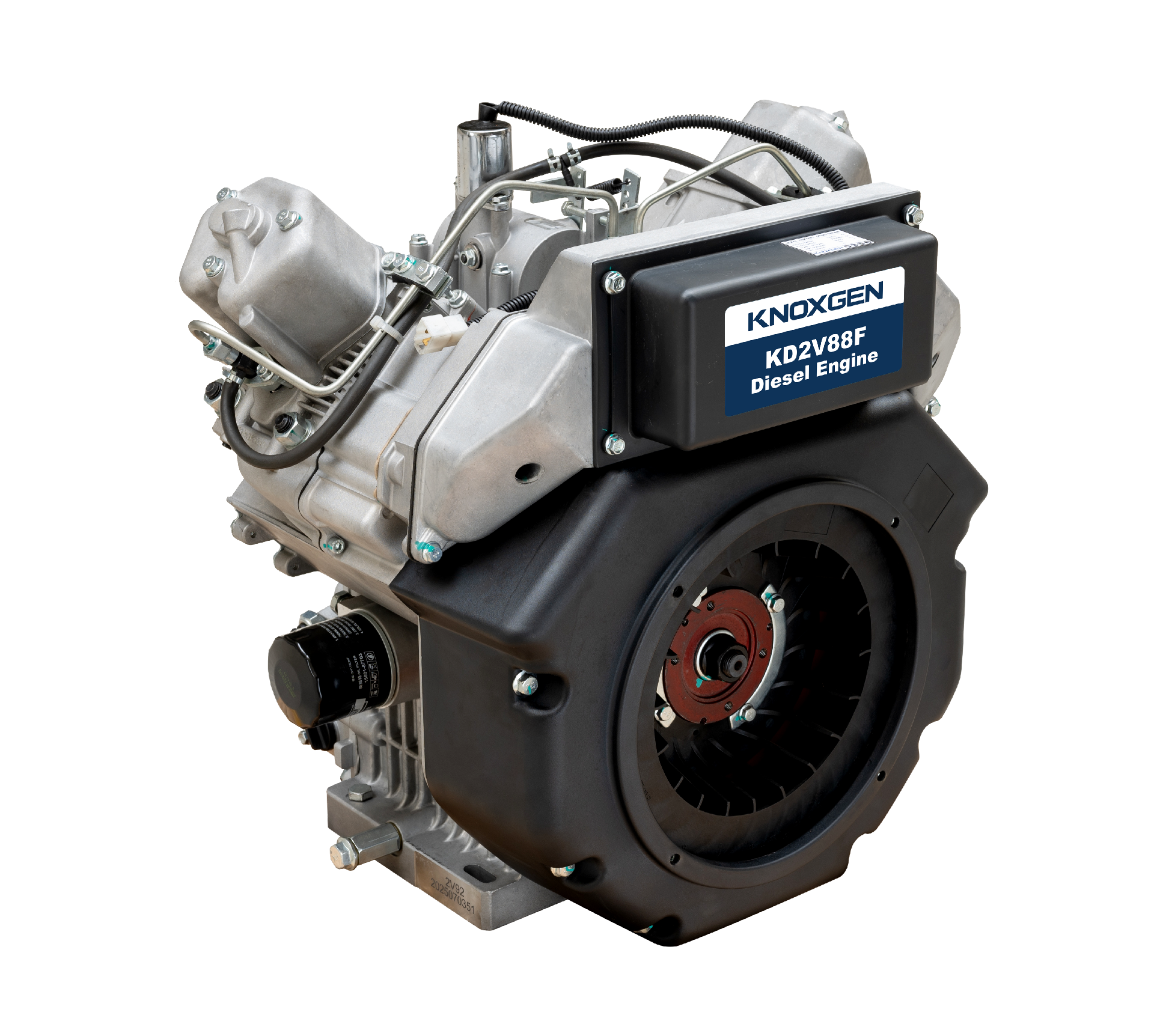

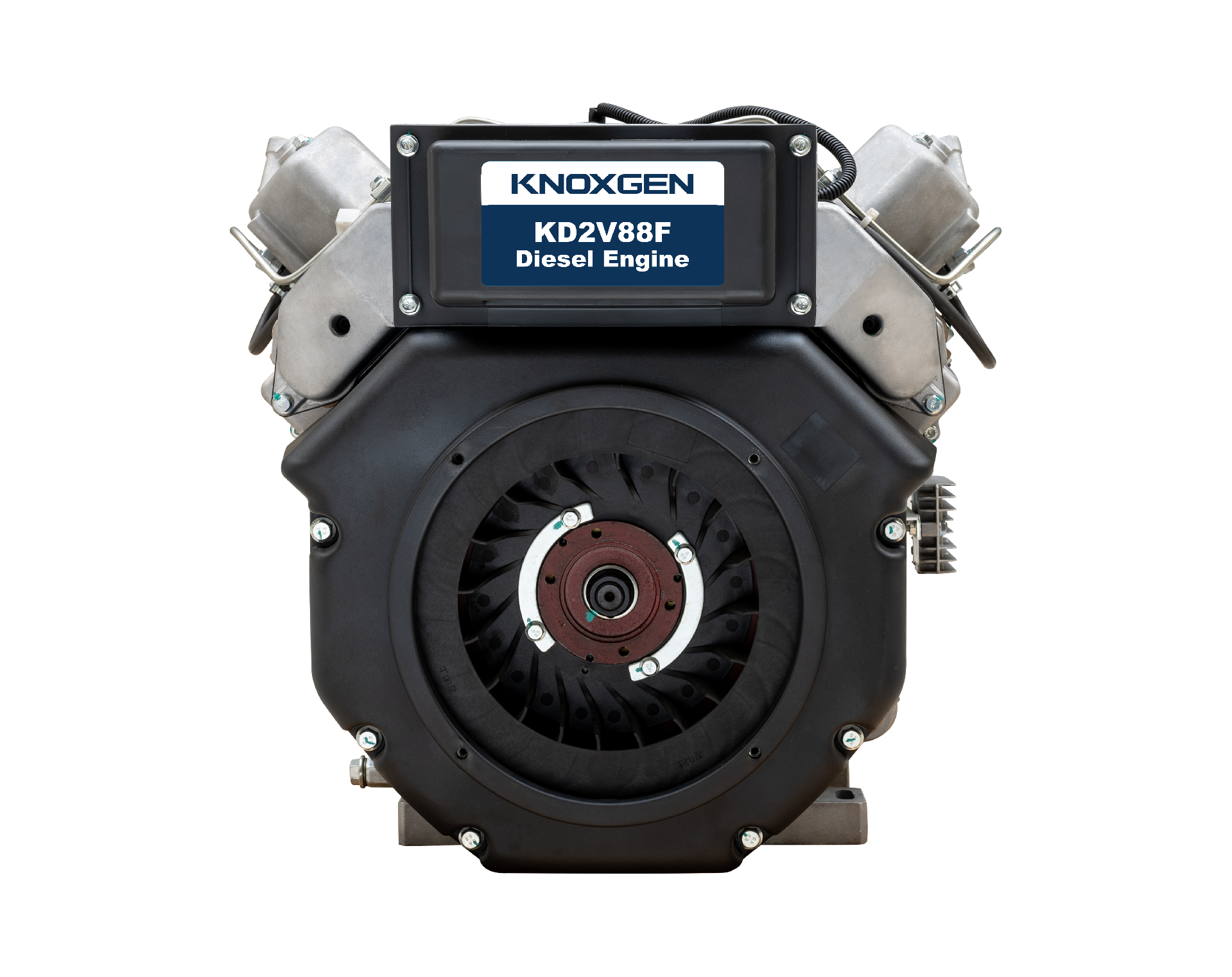

The V-type twin cylinder water-cooling diesel engine is compact and lightweight, whose rigidity has been greatly enhanced.
It is featured by reliable and stable performance, easy disassembly, and maintenance.
Application of cylinder gear driving device leads to a more compact, precise, and reliable structure.

Features & benefits

●  Firm construction, light weight, improved stiffness and steadiness.
●  Steady and reliable performance.
  Voltage stabilization tank parts would decrease the inlet noise.
  The column gear driving is more compact, exact and reliable.
  Vertical shaft or horizontal shaft are optional.
  Electric starter make starting more easily.
  Easy maintenance





  • Previous: KD292F
  • Next: KD2V86

  • Diesel Engine
    KD2V88
    Type
    Two cylinder, V-twin, air-cooled, four stroke, direct injection
    Bore× Stroke mm88×72
    DisplacementL0.875
    Compression ratio
    19
    Rated power/Rated speedkW/r/min13/3000 14/3600
    The lowest speed at zero loadr/min≤1000
    Lubricating system
    Pressure splashed
    Starting system
    Electric starter
    Rotation direction   (face to the output axle)
    Counterclockwise
    Fuel type
    0#,-10#,-20# diesel
    Fuel consumption(g/kW.h)/r/min275/3000 280/3600
    Lube oil type
    CD grade or SAE 10W-30, 15W-40
    Lube oil capacityL2.3
    Starting Motor CapacityV, Kw12V 1.4kW
    Charging Generator CapacityV, A12V 20A
    Accumulator CapacityV, Ah12V 60Ah
    Overall dimension(L×W×H)mm550×400×460
    Dry weightkg60
