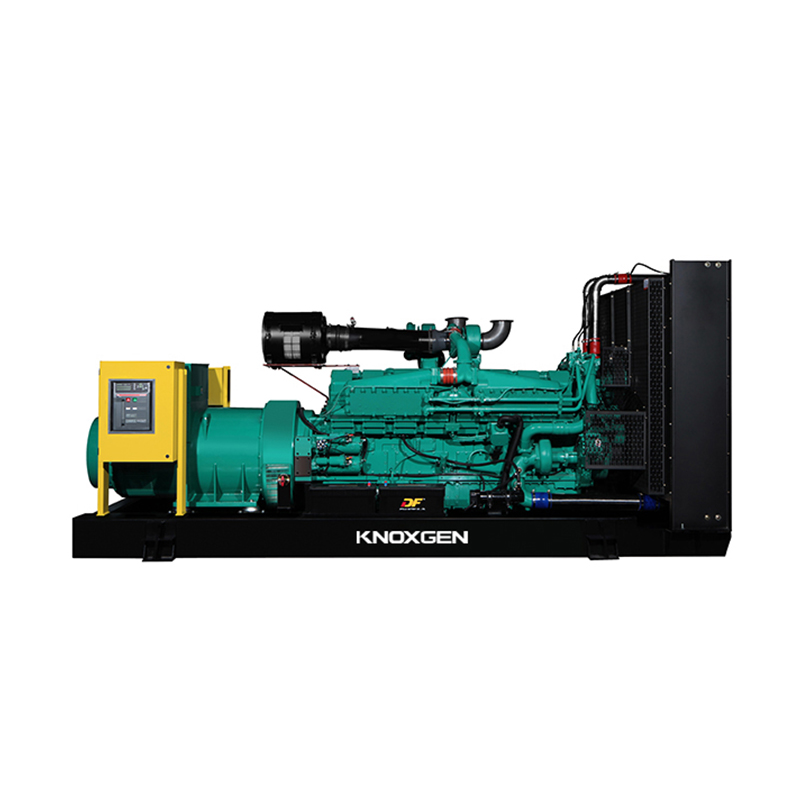

KDC Cummins
| KDC Series -- Powered by Cummins Engine | Three-phase 50Hz | ||||||||||
| Genset Model | Prime Power | Standby Power | Engine | Alternator | Control System | Fuel cons 75%(L/H) | Dimension(mm) | ||||
| KW | KVA | KW | KVA | Cummins | Stamford | Knoxgen | Open type | Soundproof type | |||
| KDC24E | 17 | 21 | 19 | 24 | 4B3.9-G11 | S0L2-G1 | L1L1D-E4 | Standard: 6120 Auto control system | 4.6 | 1850*900*1360 | 2280*950*1510 |
| KDC28E | 22 | 27.5 | 24 | 30 | 4B3.9-G1 | PI144F | L1L1D-F4 | 5.7 | 1850*900*1360 | 2280*950*1510 | |
| KDC28E(G2) | 22 | 27.5 | 24 | 30 | 4B3.9-G2 | PI144F | L1L1D-F4 | 5.7 | 1850*900*1360 | 2280*950*1510 | |
| KDC44E | 32 | 40 | 35 | 44 | 4BT3.9-G1 | S1L2-K1 | L2L1D-A4 | 7.9 | 1850*900*1360 | 2280*950*1510 | |
| KDC44E(G2) | 32 | 40 | 35 | 44 | 4BT3.9-G2 | S1L2-K1 | L2L1D-A4 | 7.9 | 1850*900*1360 | 2280*950*1510 | |
| KDC55E | 40 | 50 | 44 | 55 | 4BTA3.9-G2 | S1L2-R1 | L2L1D-B4 | 8.2 | 1850*900*1360 | 2280*950*1510 | |
| KDC66E | 48 | 60 | 53 | 66 | 4BTA3.9-G2 | S1L2-Y1 | L2L1D-C4 | 10.3 | 1850*900*1360 | 2280*950*1510 | |
| KDC83E | 66 | 82.5 | 60 | 75 | 4BTA3.9-G11 | UCI224F | L2L1D-E4 | 12.0 | 1850*900*1360 | 2280*950*1510 | |
| KDC110E(L) | 80 | 100 | 88 | 110 | 4BTA3.9-G13 | UCI274C | L3L1D-A4 | 14.1 | 1850*900*1360 | 2280*950*1510 | |
| KDC110E(G1) | 80 | 100 | 88 | 110 | 6BT5.9-G1 | UCI274C | L3L1D-A4 | 15.6 | 2200*1050*1550 | 2850*1050*1650 | |
| KDC110E | 80 | 100 | 88 | 110 | 6BT5.9-G2 | UCI274C | L3L1D-A4 | 15.6 | 2200*1050*1550 | 2850*1050*1650 | |
| KDC125E | 92 | 115 | 100 | 125 | 6BTA5.9-G2 | UCI274D | L3L1D-B4 | 19.3 | 2200*1050*1550 | 2850*1050*1650 | |
| KDC142E | 104 | 130 | 114 | 142 | 6BTAA5.9-G2 | UCI274E | L3L1D-D4 | 21.2 | 2300*950*1530 | 3000*1050*1660 | |
| KDC170E | 125 | 156 | 136 | 170 | 6BTAA5.9-G12 | UCI274F | L3L1D-F4 | 24.6 | 2300*950*1530 | 3000*1050*1660 | |
| KD176E | 128 | 160 | 141 | 176 | 6CTA8.3-G2 | UCI274F | L3L1D-F4 | 24.8 | 2400*950*1630 | 3100*1130*1950 | |
| KDC200E(G1) | 145 | 181 | 160 | 200 | 6CTA8.3-G1 | UCI274G | L3L1D-G4 | 29.7 | 2400*950*1630 | 3100*1130*1950 | |
| KDC200E | 145 | 181 | 160 | 200 | 6CTA8.3-G2 | UCI274G | L3L1D-G4 | 29.7 | 2400*950*1630 | 3100*1130*1950 | |
| KDC220E | 160 | 200 | 176 | 220 | 6CTAA8.3-G2 | UCI274H | L3L1D-J4 | 32.2 | 2450*1050*1630 | 3200*1130*1950 | |
| KDC275DE | 200 | 250 | 220 | 275 | 6LTAA8.9-G2 | UCDI274K | L3L1D-L4 | 38.3 | 2550*1050*1930 | 3300*1180*2080 | |
| KDC300E | 216 | 270 | 240 | 300 | 6LTAA9.5-G3 | S4L1D-D4 | L4L1D-B4 | 44.0 | 2900*1150*1765 | 3800*1500*2100 | |
| KDC331E | N/A | N/A | 265 | 331 | 6LTAA9.5-G1 | HCI444D | L4L1D-B4 | 52.0 | 3050*1150*2000 | 3950*1500*2250 | |
| KDC425E | 310 | 388 | 340 | 425 | 6ZTAA13-G3 | S4L1D-F4 | L4L1D-G4 | 60.3 | 2900*1150*1765 | 4100*1600*2480 | |
| KDC475E | 350 | 438 | 380 | 475 | 6ZTAA13-G2 | S4L1D-G4 | L5L1D-A4 | 68.0 | 2900*1150*1765 | 4100*1600*2480 | |
| KDC500DE | 380 | 475 | 400 | 500 | QSZ13-G3 | S5L1D-C4 | L5L1D-B4 | 67.7 | 3200*1400*2200 | 4300*1600*2250 | |
| KDC275E | 200 | 250 | 220 | 275 | MTA11-G2 | UCDI274K | L3L1D-L4 | 38.8 | 3050*1150*2000 | 3950*1600*2230 | |
| KDC350E | 250 | 313 | 280 | 350 | MTAA11-G3 | S4L1D-D4 | L4L1D-C4 | 48.6 | 3050*1150*2000 | 3950*1600*2230 | |
| KDC275E | 200 | 250 | 220 | 275 | NT855-GA | UCDI274K | L3L1D-L4 | 39.3 | 3050*1150*2000 | 3950*1600*2230 | |
| KDC303E | 220 | 275 | 242 | 303 | NTA855-G1A | S4L1D-D4 | L4L1D-B4 | 46.1 | 3050*1150*2000 | 3950*1600*2230 | |
| KDC350E | 256 | 320 | 280 | 350 | NTA855-G1B | HCI444ES | L4L1D-D4 | 53.5 | 3050*1150*2000 | 3950*1520*2250 | |
| KDC380E | 280 | 350 | 304 | 380 | NTA855-G2A | S4L1D-E4 | L4L1D-E4 | 54 | 3050*1150*2000 | 3950*1600*2230 | |
| KDC412E | 300 | 375 | 330 | 412 | NTAA855-G7 | S4L1D-F4 | L4L1D-F4 | 62.2 | 3300*1150*2150 | 4200*1600*2240 | |
| KDC450E | 330 | 413 | 360 | 450 | NTAA855-G7A | S4L1D-F4 | L5L1D-A4 | 71.8 | 3300*1150*2150 | 4200*1600*2240 | |
| KDC500E | 360 | 450 | 400 | 500 | KTA19-G3 | S4L1D-G4 | L5L1D-A4 | 72.8 | 3500*1450*2250 | 4300*1600*2250 | |
| KDC550E | 400 | 500 | 440 | 550 | KTA19-G3A | S5L1D-C4 | L5L1D-B4 | 80.1 | 3500*1450*2250 | 4300*1600*2250 | |
| KDC631E | 420 | 525 | 505 | 631 | KTAA19-G5 | S5L1D-D4 | L5L1D-C4 | 81.5 | 3600*1450*2400 | 4500*1700*2250 | |
| KDC575E | 460 | 575 | 520 | 650 | KTAA19-G6 | S5L1D-E4 | L5L1D-D4 | 94.6 | 3500*1520*2250 | 4500*1700*2250 | |
| KDC650E | N/A | N/A | 520 | 650 | KTA19-G8 | S5L1D-E4 | L5L1D-D4 | N/A | 3500*1520*2250 | 4500*1700*2250 | |
| KDC688E | N/A | N/A | 550 | 688 | KTAA19-G6A | HCI544FS | L5L1D-E4 | N/A | 3650*1550*2490 | 4500*1700*2250 | |
| KDC713E | 520 | 650 | 570 | 713 | QSK19-G4 | S5L1D-F4 | L5L1D-F4 | 106.8 | 3650*1550*2490 | 4500*1700*2250 | |
| KDC625E | 500 | 625 | 550 | 688 | KT38-G | S5L1D-F4 | L5L1D-E4 | 97.1 | 4400*2250*2500 | ISO 20'GP | |
| KDC788E | 570 | 713 | 630 | 788 | KTA38-G1 | S5L1D-H4 | L6L1D-A4 | 110.7 | 4400*2250*2500 | ISO 20'GP | |
| KDC825E | 600 | 750 | 660 | 825 | KTA38-G2 | S5L1D-H4 | L6L1D-A4 | 127.3 | 4400*2250*2500 | ISO 20'GP | |
| KDC880E | 640 | 800 | 704 | 880 | KTA38-G2B | S6L1D-C4 | L6L1D-B4 | 125.6 | 4400*2250*2500 | ISO 20'GP | |
| KDC1000E | 728 | 910 | 800 | 1000 | KTA38-G2A | S6L1D-D4 | L6L1D-C4 | 145.1 | 4400*2250*2500 | ISO 20'GP | |
| KDC1100E | 800 | 1000 | 880 | 1100 | KTA38-G5 | S6L1D-E4 | L6L1D-D4 | 158 | 4400*2250*2500 | ISO 20'GP | |
| KDC1250E | 910 | 1138 | 1000 | 1250 | KTA38-G9 | S6L1D-F4 | L6L1D-E4 | 176.6 | 4500*2250*2500 | ISO 20'GP | |
| KDC1375QE | 1000 | 1250 | 1100 | 1375 | QSK38-G5 | S6L1D-G4 | L6L1D-F4 | 202.3 | 4400*2250*2500 | ISO 20'GP | |
| KDC1375E | 1000 | 1250 | 1100 | 1375 | KTA50-G3 | S6L1D-G4 | L6L1D-F4 | 195.9 | 5350*2000*2530 | ISO 20'HQ | |
| KDC1625E | 1100 | 1375 | 1300 | 1625 | KTA50-G8 | S6L1D-H4 | L7L1D-A4 | 213.5 | 5350*2000*2530 | ISO 40'HQ | |
| KDC1650E | 1200 | 1500 | 1320 | 1650 | KTA50-GS8 | S7L1D-C4 | L7L1D-B4 | 238.5 | 5350*2000*2530 | ISO 40'HQ | |
| KDC1875E | 1320 | 1650 | 1500 | 1875 | KTA50-G15X | S7L1D-D4 | L7L1D-C4 | 256.2 | 5350*2000*2530 | ISO 40'HQ | |
| KDC2063E | 1500 | 1875 | 1650 | 2063 | KTA50-G16A | S7L1D-F4 | L7L1D-D4 | 291.2 | 5350*2000*2530 | ISO 40'HQ | |
| KDC2250E | 1640 | 2050 | 1800 | 2250 | QSK60-G4 | S7L1D-G4 | L7L1D-E4 | 291.0 | 6200*2300*2550 | ISO 40'HQ | |
| KDC Series -- Powered by Cummins Engine | Three-phase 60Hz | ||||||||||
| Genset Model | Prime Power | Standby Power | Engine | Alternator | Control System | Fuel cons 75%(L/H) | Dimension(mm) | ||||
| KW | KVA | KW | KVA | Cummins | Stamford | Knoxgen | Open type | Soundproof type | |||
| KDC28E6 | 21 | 26 | 22 | 28 | 4B3.9-G11 | S0L2-M1 | L1L1D-E4 | Standard: 6120 Auto control system | 4.8 | 1850*900*1350 | 2280*950*1510 |
| KDC33E6 | 24 | 30 | 26 | 33 | 4B3.9-G2 | S0L2-P1 | L1L1D-F4 | 6.8 | 1850*900*1350 | 2280*950*1510 | |
| KDC38E6 | 28 | 35 | 30 | 38 | 4B3.9-G12 | S1L2-J1 | L1L1D-G4 | 7.5 | 1850*900*1350 | 2280*950*1510 | |
| KDC50E6 | 36 | 45 | 40 | 50 | 4BT3.9-G2 | S0L2-N1 | L1L1D-H4 | 8.4 | 1850*900*1350 | 2280*950*1510 | |
| KDC68E6 | 50 | 63 | 54 | 68 | 4BTA3.9-G2 | UCI224D | L2L1D-B4 | 11.9 | 1850*900*1350 | 2280*950*1510 | |
| KDC70E6 | 52 | 65 | 56 | 70 | 4BTA3.9-G2 | SIL2-Y1 | L2L1D-C4 | 11.9 | 1850*900*1350 | 2280*950*1510 | |
| KDC77E6 | 56 | 70 | 62 | 77 | 4BTA3.9-G11 | UCI224E | L2L1D-C4 | 12.5 | 1850*900*1350 | 2280*950*1510 | |
| KDC95E6 | 68 | 85 | 76 | 95 | 4BTA3.9-G11 | UCI224F | L2L1D-D4 | 14.0 | 1850*900*1350 | 2280*950*1510 | |
| KDC100E6 | 72 | 90 | 80 | 100 | 4BTA3.9-G11 | UCI224G | L2L1D-E4 | 15.6 | 1850*900*1350 | 2280*950*1510 | |
| KDC120E6 | 88 | 110 | 96 | 120 | 6BT5.9-G2 | UCI274C | L2L1D-F4 | 20.8 | 2200*1000*1530 | 3000*1050*1740 | |
| KDC138E6 | 100 | 125 | 110 | 138 | 6BT5.9-G2(M) | UCI 274D | L3L1D-B4 | 21.9 | 2200*1000*1530 | 3000*1050*1740 | |
| KDC145E6 | 104 | 130 | 116 | 145 | 6BTA5.9-G2 | UCI274D | L3L1D-B4 | 22.8 | 2200*1000*1530 | 3000*1050*1740 | |
| KDC156E6 | 116 | 145 | 125 | 156 | 6BTAA5.9-G2 | UCI274E | L3L1D-C4 | 23.4 | 2350*1000*1530 | 3000*1050*1740 | |
| KDC180E6 | 134 | 168 | 144 | 180 | 6BTAA5.9-G12 | UCI274F | L3L1D-D4 | 29.2 | 2350*1000*1530 | 3000*1050*1740 | |
| KDC220E6 | 160 | 200 | 176 | 220 | 6CTA8.3-G2 | UCI274G | L3L1D-G4 | 34.3 | 2400*1000*1710 | 3200*1200*1950 | |
| KDC250E6 | 176 | 220 | 200 | 250 | 6CTAA8.3-G2 | UCI274H | L3L1D-H4 | 37.8 | 2500*1000*1710 | 3200*1200*1950 | |
| KDC285E6 | 208 | 260 | 228 | 285 | 6LTAA8.9-G2 | UCDI274J | L3L1D-K4 | 41.6 | 2500*1000*1710 | 3200*1200*1950 | |
| KDC310E6 | 224 | 280 | 248 | 310 | 6LTAA8.9-G3 | UCDI274K | L3L1D-L4 | 44.4 | 3050*1150*2000 | 4200*1500*2250 | |
| KDC315E6 | 228 | 285 | 252 | 315 | 6LTAA9.5-G3 | UCDI274K | L3L1D-L4 | 47.0 | 3050*1150*2000 | 4200*1500*2250 | |
| KDC350E6 | 256 | 320 | 280 | 350 | 6LTAA9.5-G1 | S4L1D-D4 | L4L1D-B4 | 50.0 | 3050*1150*2000 | 4200*1500*2250 | |
| KDC500QE6 | 368 | 460 | 400 | 500 | QSZ13-G3 | S4L1D-F4 | L4L1D-G4 | 75.7 | 3400*1300*2100 | 4630*1660*2250 | |
| KDC350E6 | 250 | 312 | 280 | 350 | NT855-G1 | S4L1D-D4 | L4L1D-B4 | 56.1 | 2500*1000*1710 | 3200*1200*1950 | |
| KDC375E6 | 275 | 344 | 300 | 375 | NTA855-G1B | S4L1D-D4 | L4L1D-B4 | 61.7 | 3020*1100*1850 | 3890*1460*2150 | |
| KDC435E6 | 320 | 400 | 348 | 435 | NTA855-G3 | S4L1D-E4 | L4L1D-E4 | 66.0 | 3300*1150*2000 | 4200*1500*2250 | |
| KDC500E6 | 350 | 438 | 400 | 500 | KTA19-G2 | S4L1D-F4 | L4L1D-F4 | 76.0 | 3430*1520*2200 | 4500*1700*2250 | |
| KDC565E6 | 412 | 515 | 452 | 565 | KTA19-G3 | S5L1D-C4 | L5L1D-A4 | 86.0 | 3430*1520*2200 | 4500*1700*2250 | |
| KDC625E6 | 450 | 563 | 500 | 625 | KTA19-G3A | S5L1D-E4 | L5L1D-B4 | 83.4 | 3430*1520*2200 | 4500*1700*2250 | |
| KDC750E6 | N/A | N/A | 600 | 750 | KTAA19-G6A | S5L1D-F4 | L5L1D-F4 | 93 | 3650*1638*2050 | 5030*1860*2550 | |
| KDC750QE6 | 550 | 688 | 600 | 750 | QSK19-G5 | S5L1D-F4 | L5L1D-D4 | 113.0 | 3650*1638*2050 | 5030*1860*2550 | |
| KDC850E6 | 620 | 775 | 680 | 850 | KT38-G | S5L1D-H4 | L5L1D-F4 | 118.0 | 4500*1800*2200 | ISO 20'ft | |
| KDC1000E6 | 728 | 910 | 800 | 1000 | KTA38-G2 | S6L1D-D4 | L6L1D-B4 | 157.0 | 4500*1800*2200 | ISO 20'ft | |
| KDC1100E6 | 800 | 1000 | 880 | 1100 | KTA38-G2A | S6L1D-E4 | L6L1D-C4 | 164.0 | 4500*1800*2200 | ISO 20'ft | |
| KDC1250E6 | 900 | 1125 | 1000 | 1250 | KTA38-G4 | S6L1D-F4 | L6L1D-D4 | 190.0 | 4500*1800*2200 | ISO 20'ft | |
| KDC1375E6 | N/A | N/A | 1100 | 1375 | KTA38-G9 | S6L1D-G4 | L6L1D-F4 | 271.0 | 4750*2100*2320 | ISO 20'ft | |
| KDC1575E6 | 1100 | 1375 | 1260 | 1575 | KTA50-G3 | S6L1D-H4 | L6L1D-F4 | 222.0 | 4900*2100*2530 | ISO 40'ft | |
| KDC1875E6 | 1260 | 1575 | 1500 | 1875 | KTA50-G9 | S7L1D-D4 | L7L1D-A4 | 257.0 | 4900*2100*2530 | ISO 40'ft | |
| KDC2500QE6 | 1824 | 2280 | 2000 | 2500 | QSK60-G6 | PI 734G or S7L1D-G4 | L7L1D-E4 | 391.0 | 5820*2200*2800 | ISO 40'ft | |
